VILLES Quick release bidirectional buffer sliding system for wood door. (V68)

Italy Brand

VILLES Quick release bidirectional buffer sliding system for wood door. (V68)

Features:
■ Installation advantages: Only 52mm maintenance holes are required for installation and disassembly.
■ Unique Buffer design: Bidirectional buffer function by one damper.
■ Rail dimension : 30*30mm. Max door weight : 100kg.
■ Buffer Stroke : Opening and Closing are both 90mm.
■ 60 & 100 kg sliding systems can use same rail.

Detailed description of the product

VILLES 快拆式雙向緩衝拉門(V68)

■ 適用門重：60KG/100KG
■ 適用門寬：650mm~1300mm
■ 適用門厚：>30mm

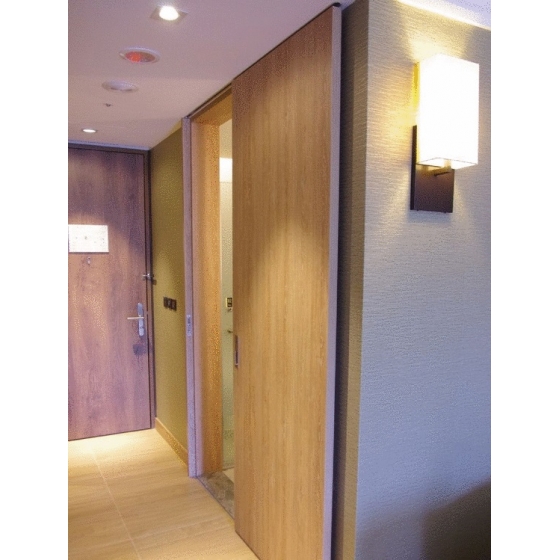

■ 可應用於隔間門(更衣室或廚房…等)
■ 內容物：

■ 拆裝示意圖： ■ 上下軌：

■ 啟動器安裝示意圖： ■ 維修孔的飾蓋：

■ 注意：安裝啟動器時，四顆六角螺絲僅需鎖緊即可，
請勿鎖過緊，以免把啟動器擠出軌道或使之裂開。

■ 門板安裝示意圖：
